EP 340 Zatyczki ochronne

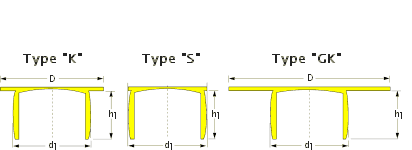

Wykonanie z płaską główką do otworów i gwintów wewnętrznych. Typ-S umiejscawia się w całości otworu.

Materiał : czysty gatunkowo LLD-PE nadający się do recyklingu.

Kolor : naturalny

Zatyczki ochronne

d₁	D	h₁	H	M₁	M₂	M₃	M₄	DIN1	DIN2	Nr artykułu
7.2	14.0	4.8	6.8	M 8			M 8 x 1			K 2
7.2	14.0	4.6	6.8	M 8			M 8 x 1			S 2
8.4	14.0	5.3	7.1	M 10						K 3
8.4	14.0	5.3	7.3	M 10						S 3
9.0	14.0	4.5	6.5				M 10 x 1			K 4
9.0	14.0	4.1	6.2				M 10 x 1			S 4
10.4	14.0	4.6	7.0	M 12	M 12 x 1.5				PG 7	K 5
10.4	14.0	4.6	7.0	M 12	M 12 x 1.5				PG 7	S 5
10.7	14.0	4.7	7.0							K 501
11.7	16.0	5.8	9.0	M 14		M 12 x 1	M 12 x 1.5			S 7
11.7	16.0	6.5	8.5	M 14		M 12 x 1	M 12 x 1.5			K 7
12.3	16.0	6.5	8.5				M 14 x 1.5	.1/4"		S 9
12.3	16.0	6.5	8.5				M 14 x 1.5	.1/4"		K 9
13.7	20.0	7.2	9.5							S 10
13.7	20.0	7.0	10.0							K 10
14.3	20.0	5.5	7.5	M 16			M 16 x 1.5		PG 9	S 11
14.3	20.0	5.5	7.5	M 16			M 16 x 1.5		PG 9	K 11
15.6	20.0	7.6	10.0	M 18				.3/8"		S 12
15.6	20.0	8.0	10.0	M 18				.3/8"		K 12
16.5	22.0	5.5	7.5		M 18 x 2		M 18 x 1.5			S 14
16.5	22.0	5.5	7.5		M 18 x 2		M 18 x 1.5			K 14
17.1	22.0	8.0	10.5	M 20						K 15
17.1	22.0	7.5	10.2	M 20						S 15
18.4	25.0	8.0	10.5				M 20 x 1.5			K 17
18.4	25.0	8.0	10.5				M 20 x 1.5			S 17
19.6	25.0	8.0	10.5	M 22				.1/2"	PG 13.5	K 18
19.6	25.0	8.0	10.5	M 22				.1/2"	PG 13.5	S 18
19.6	30.0	8.0	10.5	M 22				.1/2"	PG 13.5	K 18 GK
21.2	25.0	7.5	10.0	M 24			M 22 x 1.5	.5/8"		K 181
21.2	25.0	7.5	9.5	M 24			M 22 x 1.5	.5/8"		S 181
21.7	25.0	7.5	10.0		M 24 x 2				PG 16	K 182
21.7	25.0	7.5	10.0		M 24 x 2				PG 16	S 182
20.7	25.0	7.5	9.9				M 22 x 1.5			S 19
20.7	24.5	7.5	10.2				M 22 x 1.5			K 19
22.4	28.0	8.5	11.5				M 24 x 1.5			K 21
22.4	28.0	8.5	11.5				M 24 x 1.5			S 21
23.6	28.0	8.5	11.5	M 27						K 211
23.6	28.0	8.5	11.5	M 27						S 211
24.6	28.0	8.5	11.5				M 26 x 1.5	.3/4"		K 23
24.6	28.0	8.0	12.0				M 26 x 1.5	.3/4"		S 23
25.5	28.0	7.5	9.5		M 27 x 2		M 27 x 1.5			K 232
25.5	28.0	7.0	10.0		M 27 x 2		M 27 x 1.5			S 232
26.5	28.0	9.0	12.0	M 30			M 28 x 1.5			K 233
26.5	28.0	9.0	12.0	M 30			M 28 x 1.5			S 233
29.0	36.0	12.0	15.0		M 30 x 2		M 30 x 1.5	.7/8"	PG 21	K 24
29.0	36.0	12.0	15.0		M 30 x 2		M 30 x 1.5	.7/8"	PG 21	S 24
31.0	36.0	11.0	14.0	M 33			M 30 x 1.5	.7/8"		K 241
31.8	36.0	10.0	12.5	M 36	M 33 x 2		M 33 x 1.5	1."		K 25
31.8	36.0	10.0	12.5	M 36	M 33 x 2		M 33 x 1.5	1."		S 25
33.5	36.0	11.0	24.3				M 35 x 1.5			K 26
33.5	36.0	12.0	15.0				M 35 x 1.5			S 26
34.8	42.0	15.0	18.0			M 36 x 2				K 27 / H 19
36.5	42.0	15.0	18.0		M 39 x 3		M 38 x 1.5	1.1/8"	PG 29	K 28
36.5	42.0	14.5	17.6		M 39 x 3		M 38 x 1.5	1.1/8"	PG 29	S 28
38.4	42.0	10.0	12.5	M 42		M 39 x 2	M 39 x 1.5			K 30
38.4	42.0	9.5	12.0	M 42		M 39 x 2	M 39 x 1.5			S 30
39.0	42.0	15.0	18.0				M 40 x 1.5			K 301
39.0	42.0	15.0	18.0				M 40 x 1.5			S 301
40.0	42.0	14.6	17.7		M 42 x 3		M 40 x 1.5	1.1/4"	PG 36	K 31
40.0	42.0	14.5	18.0		M 42 x 3		M 40 x 1.5	1.1/4"	PG 36	S 31
46.0	55.0	18.0	21.0		M 48 x 3	M 48 x 2	M 45 x 1.5	1.1/2"		K 32
46.0	55.0	17.0	20.6		M 48 x 3	M 48 x 2	M 45 x 1.5	1.1/2"		S 32
48.5	55.0	12.0	15.0				M 48 x 1.5			K 33
48.5	55.0	12.0	15.0				M 48 x 1.5			S 33
51.5	54.2	17.0	21.0		M 56 x 4	M 52 x 2	M 52 x 1.5	1.3/4"		K 35
51.5	55.0	17.0	21.0		M 56 x 4	M 52 x 2	M 52 x 1.5	1.3/4"		S 35
55.0	63.0	17.4	20.5			M 56 x 2	M 55 x 1.5		PG 42	K 37
55.0	63.0	17.3	21.0			M 56 x 2	M 55 x 1.5		PG 42	S 37
58.0	63.0	18.0	21.0			M 59 x 2	M 58 x 1.5	2."		K 40
58.0	63.0	18.0	21.0			M 59 x 2	M 58 x 1.5	2."		S 40
65.0	70.0	17.4	20.5							K 42
65.0	70.0	18.0	21.0							S 42
78.0	83.0	18.0	21.0							K 43
78.0	83.0	18.0	21.0							S 43
86.0	91.0	17.5	20.0					3."		K 44

Wszystkie wymiary podane są w mm. Inne wymiary na zapytanie. Zmiany techniczne zastrzeżone.
