SES 3000 ANSI Raised Face Flange Protection Plugs ANSI

Flange Protection during Sandblasting and Painting Operations.
Ultimate Push-In Plug for the best Raised Face Protection in the market.

In. Pat. Pending.

Single push application and accurate fitting in a matter of seconds
Can be applied to flanges with dry, clean, cold, oily or wet surface !
Manufactured from durable and impact resistant nylon
Heavy duty design for positive gripping power and strong fit
Fits flanges according to DIN 2627-2638, BS 5504 and ANSI 16.5
Flange size and classification clearly marked on each plug
After Sandblasting and/or Painting no adhesive resedue clean-up from raised face required
With double Grip Tap for Easy Removal

Material : Nylon (PA 6)
Standard Colour : blue

Raised Face Flange Protection Plugs ANSI

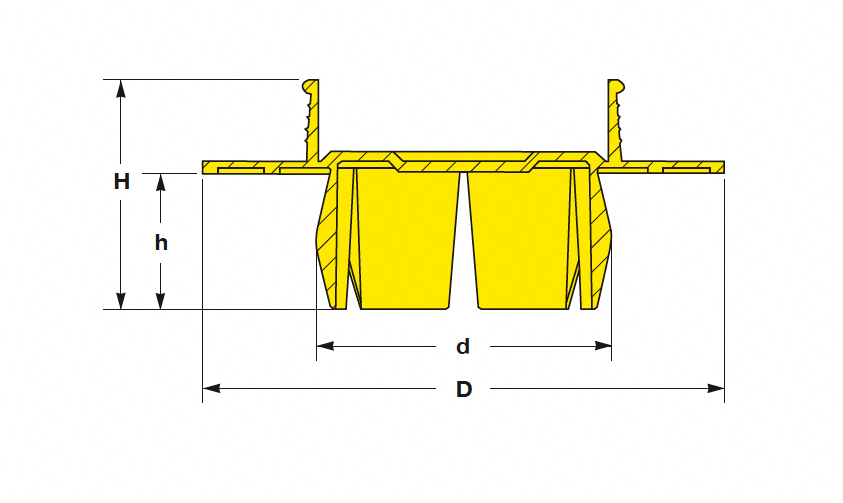

Flange Ø	Nominal Pressure	Raised face D	Clamping Range d	Height h	Depth D	Article No.
1.	150 - 300 lbs.	52.0	26.0 - 31.0	24.3	41.5	SES-ANSI 1. 150-300
1.1/4	150 - 300 lbs.	65.0	34.5 - 39.5	28.0	45.0	SES-ANSI 1.1/4 150-300
1.1/2	150 - 300 lbs.	75.0	40.5 - 45.5	28.0	45.0	SES-ANSI 1.1/2 150-300
2.	150 - 300 lbs.	92.0	52.5 - 56.5	28.0	45.0	SES-ANSI 2. 150-300
2.1/2	150 - 300 lbs.	105.0	62.0 - 67.0	28.0	45.0	SES-ANSI 2.1/2 150-300
3.	150 - 300 lbs.	128.0	77.5 - 83.0	28.0	45.0	SES-ANSI 3. 150-300
4.	150 - 300 lbs.	161.5	102.0 - 109.0	32.3	52.8	SES-ANSI 4. 150 -300
5.	150 - 300 lbs.	188.0	126.5 - 133.5	33.0	50.0	SES-ANSI 5. 150-300
6.	150 - 300 lbs.	218.0	153.9 - 161.1	33.0	50.0	SES-ANSI 6. 150 -300

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
