SES 3000 DN  Raised Face Flange Protection Plugs DIN

Print data sheet Make an inquiry
Flange Protection during Sandblasting and Painting Operations.
Ultimate Push-In Plug for the best Raised Face Protection in the market

In. Pat. Pending.

  • Single push application and accurate fitting in a matter of seconds
  • Can be applied to flanges with dry, clean, cold, oily or wet surface !
  • Manufactured from durable and impact resistant nylon
  • Heavy duty design for positive gripping power and strong fit
  • Fits flanges according to DIN 2627-2638, BS 5504 and ANSI 16.5
  • Flange size and classification clearly marked on each plug
  • After Sandblasting and/or Painting no adhesive resedue clean-up from raised face required
  • With double Grip Tap for Easy Removal

Material : Nylon (PA 6)
Standard Colour : blue

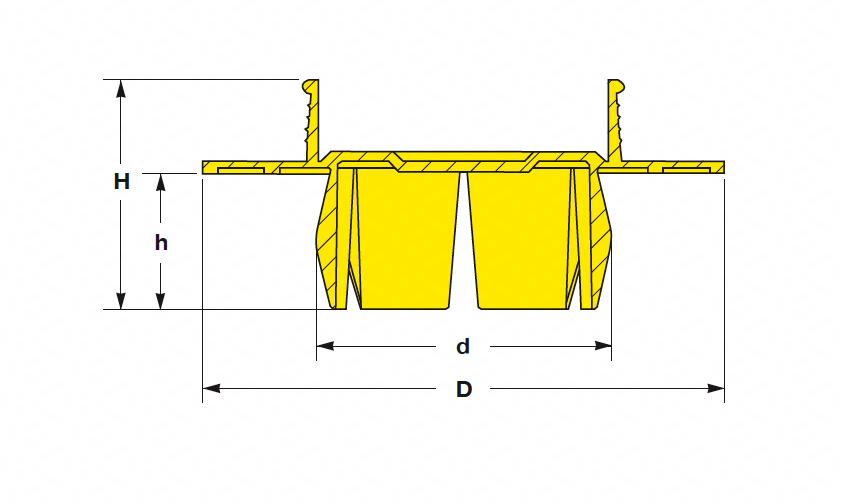

Raised Face Flange Protection Plugs DIN

Flange
Ø 		Nominal
Pressure 		Raised
face
D 		Clamping
range
d 		Height
h 		Depth
H 		Article No. Selection
DN 25 PN 1 - 6 62.0 26.0 - 31.0 28.0 45.0   SES-DN 25/PN 1- 6
DN 25 PN 10 - 100 70.0 26.0 - 31.0 24.3 41.0   SES-DN 25/PN 10-100
DN 32 PN 1 - 6 70.0 34.5 - 39.5 28.0 45.0   SES-DN 32/PN 1- 6
DN 32 PN 10 - 40 80.0 34.5 - 39.5 28.0 45.0   SES-DN 32/PN 10- 40
DN 40 PN 1 - 6 80.0 40.5 - 45.5 28.0 45.0   SES-DN 40/PN 1- 6
DN 40 PN 10 - 100 90.0 40.5 - 45.5 28.0 45.0   SES-DN 40/PN 10-100
DN 50 PN 1 - 6 92.0 52.5 - 56.5 28.0 45.0   SES-DN 50/DN 1- 6
DN 50 PN 10 - 100 102.7 52.5 - 56.5 28.0 45.0   SES-DN 50/PN 10-100
DN 65 PN 1 - 6 110.0 67.5 - 72.5 28.0 45.0   SES-DN 65/PN 1- 6
DN 65 PN 10 - 100 122.0 67.5 - 72.5 28.0 45.0   SES-DN 65/PN 10-100
DN 80 PN 1 - 6 128.0 77.5 - 83.0 28.0 46.1   SES-DN 80/PN 1- 6
DN 80 PN 10 - 100 139.0 77.5 - 83.0 28.0 46.2   SES-DN 80/PN 10-100
DN 100 PN 1 - 6 150.0 102.0 - 109.0 32.2 52.9   SES-DN 100/PN 1- 6
DN 100 PN 10 - 16 161.3 102.0 - 109.0 32.2 52.8   SES-DN 100/PN 10- 16
DN 100 PN 25 - 100 165.3 102.0 - 109.0 32.2 52.7   SES-DN 100/PN 25-100
DN 125 PN 1 - 6 180.0 126.5 - 133.5 33.0 50.0   SES-DN 125/PN 1- 6
DN 125 PN 10 - 100 188.0 126.5 - 133.5 33.0 50.0   SES-DN 125/PN 10-100
DN 150 PN 1 - 6 204.0 153.9 - 161.0 32.3 52.7   SES-DN 150/PN 1- 6
DN 150 PN 10 - 16 216.0 153.9 - 161.0 32.2 52.7   SES-DN 150/PN 10- 16
DN 150 PN 25 - 100 220.0 153.9 - 161.0 32.2 52.7   SES-DN 150/PN 25-100

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
