EPN 705 EMC Brass Cable Glands

This EMC / EMI cable gland is designed to ground cable braids directly to the wall with optimum contact to the periphery of the gland base.

Material

Brass, nickel plated

EMC Brass Cable Glands

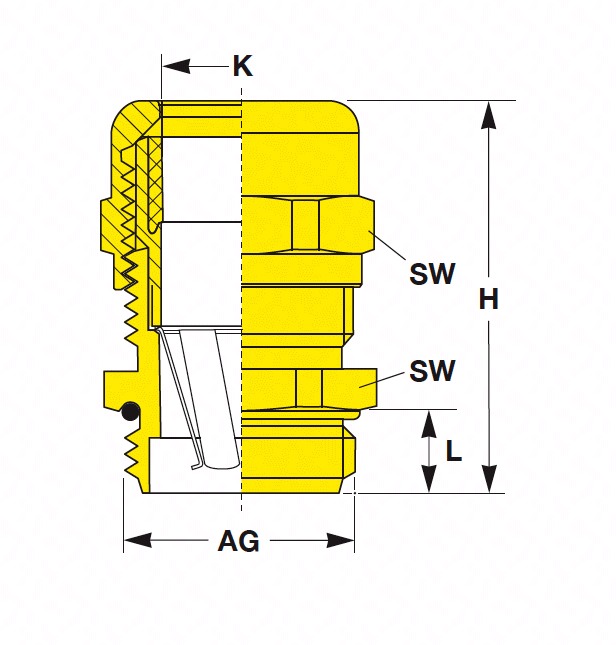

Thread- Size AG	Clamping Range K	Length of Thread L	Depth H	Spanner Size SW	Article No.
M 16 x 1.5	5.0 - 9.0	5.0	30.0	17	EPN 705/ M 16 x 1.5
M 20 x 1.5	9.0 - 13.0	6.0	33.1	22	EPN 705/ M 20 x 1.5
M 25 x 1.5	11.0 - 16.0	7.0	35.0	27	EPN 705/ M 25 x 1.5
M 32 x 1.5	14.0 - 21.0	8.0	39.0	34	EPN 705/ M 32 x 1.5
M 40 x 1.5	19.0 - 27.0	8.0	41.7	43	EPN 705/ M 40 x 1.5
M 50 x 1.5	24.0 - 35.0	9.0	50.1	55	EPN 705/ M 50 x 1.5
M 63 x 1.5	32.0 - 42.0	10.0	52.5	65	EPN 705/ M 63 x 1.5

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
