EPS 375 High Temperature Masking Silicone Push-Fit Plugs with Handle

Silicone Hollow Plugs with handles are designed to plug plain and threaded holes; they will mask off the hole and allow finishing up to it.

Central pull tab for easy and quick insertion and removal

Withstands temperatures up to 600°F (316°C)

Recommended for powder coating, e-coating, plating & anodizing

Hollow to make it lighter and more conforming

Tapered to fit into a range of hole sizes

Recommended for Powder coating, e-coating, plating & anodizing.

Blu Signature® Product Code: Reusable

Prosicon ® Silicone rubber 55 shore A withstands temperatures up to max. 316 ° C / 4 hours.

On request also in EPDM material up to max. 177 ° C available.

High Temperature Masking Silicone Push-Fit Plugs with Handle

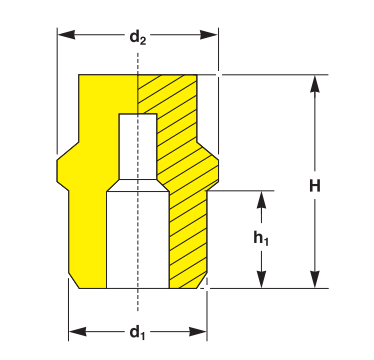

d₁	d₂	h₁	H	Metric	Shore A	Article No.
2.70	3.50	5.30	20.80 - M 3	55	1.000	EPS 375 / 0107
3.60	4.10	5.80	21.80 - M 4	55	1.000	EPS 375 / 0141
4.50	5.30	5.60	20.80 - M 5	55	1.000	EPS 375 / 0178
5.20	6.20	4.30	14.00 -	55	1.000	EPS 375 / 0205
5.30	6.30	7.50	24.50 -	55	500	EPS 375 / 0208
5.30	6.40	5.10	14.50 -	55	500	EPS 375 / 0210
5.50	6.60	5.10	11.40 - M 6	55	500	EPS 375 / 0218
5.50	6.60	7.10	23.40 -	55	500	EPS 375 / 0218L
6.80	9.00	14.50	32.30 -	55	500	EPS 375 / 0268
7.10	8.10	5.10	12.70 - M 8	55	500	EPS 375 / 0278
7.10	8.10	7.10	22.70 - M 8	55	500	EPS 375 / 0278L
7.20	8.60	4.20	12.00 -	55	500	EPS 375 / 0283S
7.20	8.50	5.10	14.90 -	55	500	EPS 375 / 0283
7.20	8.40	7.50	22.80 -	55	500	EPS 375 / 0283L
8.50	9.80	6.40	15.20 -	55	500	EPS 375 / 0336
8.50	9.80	8.40	25.30 -	55	500	EPS 375 / 0336L
9.00	10.20	6.20	17.50 -	55	250	EPS 375 / 0354
9.10	10.40	6.10	15.60 - M 10	55	250	EPS 375 / 0358
9.10	10.40	7.00	24.00 - M 10	55	250	EPS 375 / 0358L
10.00	11.40	8.90	19.10 -	55	250	EPS 375 / 0394
10.80	12.40	8.80	20.00 - M 12	55	250	EPS 375 / 0426
11.00	12.20	8.20	20.30 -	55	250	EPS 375 / 0433
11.50	13.00	8.90	19.10 -	55	250	EPS 375 / 0451
12.10	14.00	7.60	22.00 -	55	250	EPS 375 / 0477
13.00	14.00	7.60	22.20 - M 14	55	250	EPS 375 / 0510
14.80	17.00	10.40	23.00 - M 16	55	100	EPS 375 / 0583
14.90	16.60	10.30	23.00 -	55	100	EPS 375 / 0587
16.30	18.60	9.50	32.60 - M 18	55	100	EPS 375 / 0643
18.40	20.30	12.30	28.70 -	55	100	EPS 375 / 0724S
18.40	20.60	13.00	28.60 - M 20	55	100	EPS 375 / 0724
18.70	20.50	23.00	39.00 -	55	100	EPS 375 / 0736
21.00	23.20	9.50	32.60 - M 22	55	100	EPS 375 / 0825
21.30	23.90	13.60	33.10 - M 24	55	100	EPS 375 / 0840
22.80	24.10	16.00	37.90 -	55	100	EPS 375 / 0896

All dimensions are given in mm. Other dimensions on request. Specifications subject to change.
